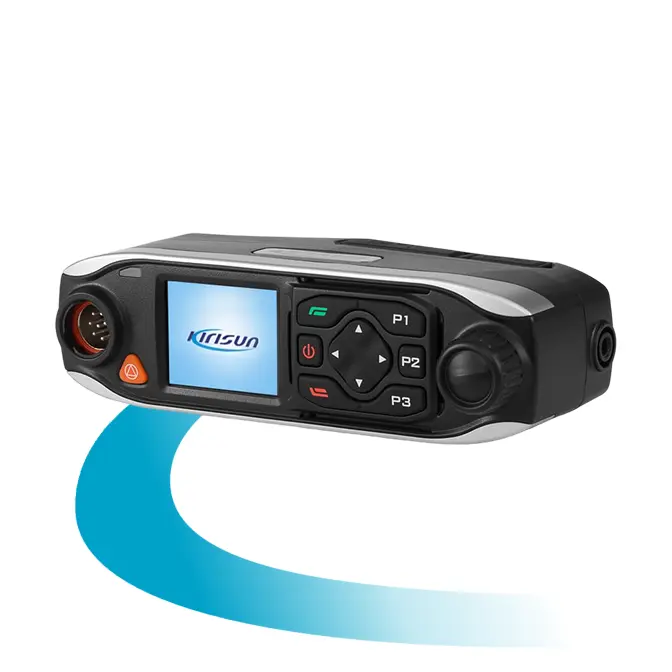

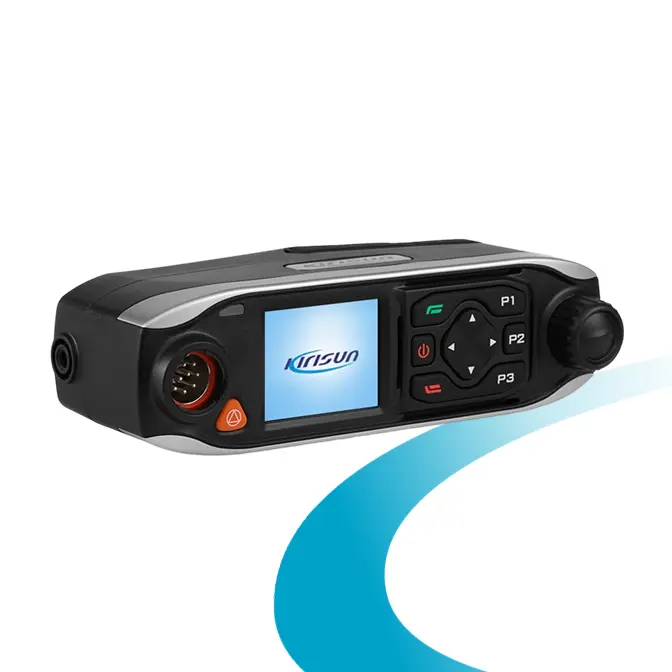

M 50 3G & 4G PoC Mobile Radio

Professional for Communication in Vehicles, Global PTT Service via 2G/3G/4G/Wi-Fi Network, Easy-to-deploy & Easy-to-expand Network, Large Coverage & Less Limit in Capacity.


User Manual

Download

Brochure

Download

Category:

Feature

Compact design, easy to install
Compact design, support installation with different accessories.

Global PTT service, dual SIM cards
Users can use PTT service globally via public 2G/3G/4G/Wi-Fi network, support dual SIM cards.

GPS/A-GPS for more accurate positioning
GPS ensures accurate positioning outdoors, A-GPS assisted positioning is used indoors more effectively so as to integrate positioning information of public network base stations and vehicle positioning module data to provide base station assisted positioning data.

Various voice and data service
M50 supports various voice functions such as voice call (all call/group call/private call/call reminder), voice alert (incoming call/outgoing call/talk permit/low power), and duplex call.

Three programmable keys
Three programmable keys for function customization and quick operation.

Rich Applications
Wi-Fi and Bluetooth bring more possibilities for extensible third-party applications.

Flexible dispatching service
Combined with the dispatching platform, more dispatching services can be realized, such as stun, kill, revive, lone worker, Geo-fencing.

Specification

GENERAL

Network Bands  Asia/Europe/Austria Version:
FDD-LTE: B1/B3/B4/B5/B7/B8/B20/B28a/B28b
TDD-LTE: B40
CDMA 1X/EVDO: BC0
WCDMA: B1/B4/B5/B8
GSM/GPRS/EDGE: 850/900/1800 MHz
America Version:
FDD-LTE: B1/B2/B4/B5/B7/B12/B17/B19/B25/
B26/B28a/B28b
WCDMA: B1/B2/B4/B5
GSM/GPRS/EDGE: 850/1900 MHz
Wi-Fi 2.4/5Ghz
RAM+ROM 512MB+4GB
Operating System Android 6.0
Working Voltage 13-24V
Dimensions 152.6mm*43.4mm*49mm
Weight ≤250g
Display 1.77”color display screen,
resolution 128*160
Working
Temperature
-20℃ + 55℃
Storage
Temperature
-40℃ + 80℃

Accessory

Mounting Bracket

Handheld Microphone

DC Power Cord
