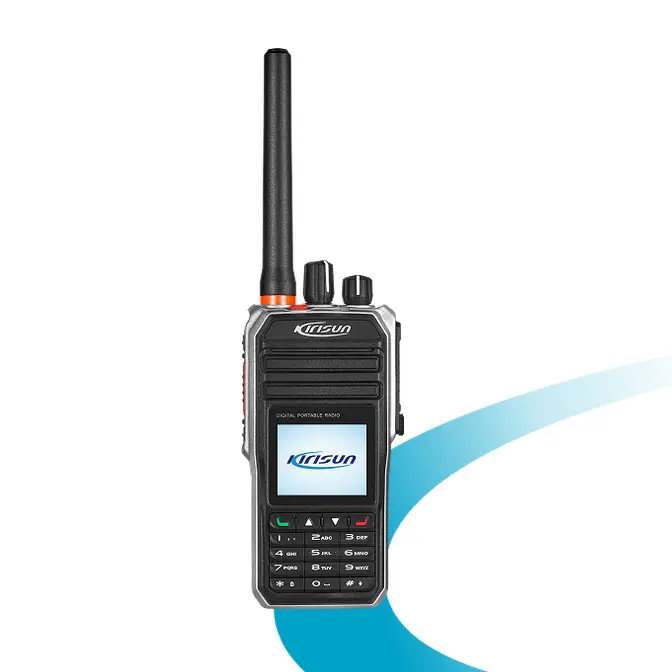

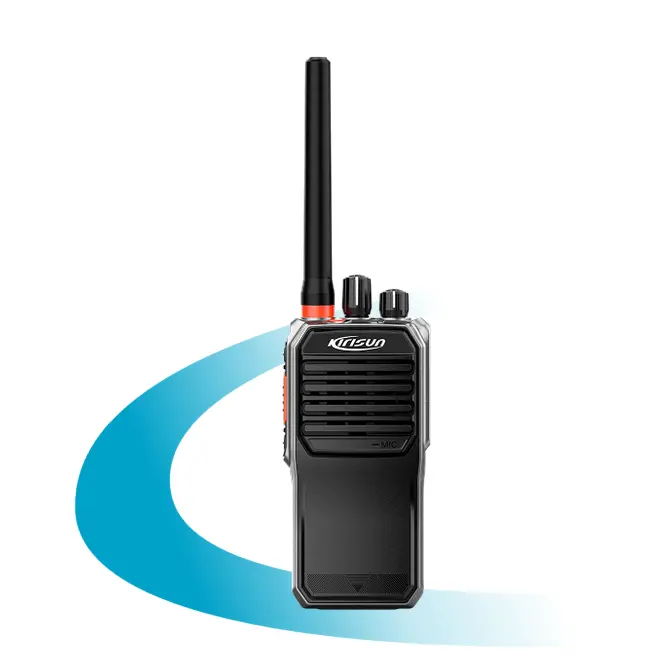

DP 680 DMR Portable Radio

Lightweight and robust the DP 680 is an open-standard DMR radio capable of providing superior quality voice communication in an ergonomic design approved to IP 67 and MIL-STD 810. With a long-lasting battery, it is the ideal solution for organizations looking for a cost-effective clear digital communication with all-round digital functions, and remarkable quality to increase your management efficiency and enable you to be responsive to emergent situations.


Brochure

Download

User Manual

Download

Category:

Feature

Robust and Stylish
DP680 is compact and light weighted, and it is easy to carry and wear. The unique aluminum-alloy housing enables better wear-resisting and better heat dissipation. Compliant to MIL-STD-810 C/D/E/F/G and IP67 standards, DP680 delivers excellent performance in demanding environment.

Clear and Loud Voice
Equipped with an 2W optimized powerful loudspeaker, DP680 delivers clear and loud voice even in a noisy environment. AI-based noise cancellation technology decreases background noise and howling by 30dB, ensuring clear and smooth voice calls.

Easy to Operate
Simple to use, user-friendly and intelligent to deliver better user experience. 1.8-inch color LCD screen, users can check battery status, field strength indication, and caller information at any time according to actual working scenarios. 360° rotary channel knob, convenient channel switching, programmable buttons and keys make radio operation easy and swift.

Multi-Mode Operation
It supports analog conventional, digital conventional, MPT trunking, and DMR Tier III trunking, facilitating smooth analog-to-digital transition. Multiple advanced analog signaling, including MDC1200, DTMF, 2-Tone and 5-Tone, provides higher expansion capacity in current communication systems.

Secure Communication
Provides basic and advanced encryption capability, including ARC4, DES, and AES256 bit encryption to further enhance the communication security.

Long Battery Life
DP680 with standard 2000mAh battery can work up to 13-15 hours. It has 2500mAh larger battery as optional.

Enhanced Safety
DP680 is designed to enhance safety in your organization with rapid response by a single press on the alarm. The built-in man-down and lone worker functions protect your personnel at the workplace.

Multimedia Service
DP680 supports rich voice and data service, including all kinds of voice call, text and status message, GPS location, VOX, emergency call, priority call and all call.

Enhanced Service
In addition to conventional communications service, DP680 provides richer enhanced service, including Tx interrupt, roaming, dual-slot pseudo trunking, kill, stun, retrive, remote monitoring, radio check, VOX, vibration, real time clock, scan etc.

Specification

GENERAL

Frequency Range UHF: 400-470MHz
Channel Capacity 1024
Zone Capacity 248
Channel Spacing 12.5kHz/20kHz/25kHz
Operating Voltage 7.5V DC±20%
Battery 2000mAh(Standard), 2500mAh(Optional)
Battery Life (2000mAh)
(5-5-90 Duty Cycle, High TX Power)
Analog:13.5 hours@2000mAh
Digital: 15.5 hours @2000mAh
Frequency Stability ±0.5 ppm
Antenna Impedance 50Ω
Dimensions(H·W·D)
(with standard battery, without antenna)
123mmx55mmx33mm(2000mAh)
Weight(with standard battery) 353g(2000mAh)
LCD Display 1.8inch, 5 rows

RECEIVER

Sensitivity Analog 0.22μV(12dB SINAD)
Sensitivity Digital 0.22μV/BER5%
Selectivity TIA-603
ETSIl
60dB@12.5kHz, 70dB@20/25kHz(TIA-603)
60dB@12.5kHz, 70dB@20/25kHz(ETSI)
Intermodulation 70dB@12.5kHz/25kHz(TIA-603)
65dB@12.5kHz/25kHz(ETSI)
Spurious Response Rejection
TIA-603 ETSI
70dB@12.5/20/25kHz(TIA-603)
70dB@12.5/20/25kHz(ETSI)
Hum and Noise 40dB@12.5KHz, 45dB@20/25KHz
Audio Power Output 2W
Rated Audio Distortion ≤3%(typical)
Audio Response +1~-3dB
Conducted Spurious Emission -57dBm@<1GHz,-47dBm@1GHz

TRANSMITTER

RF Power Output 1W/4W(UHF)
FM Modulation 11K0F3E@12.5kHz;14K0F3E@20kHz;
16K0F3E@25kHz
4FSK Digital Modulation 12.5kHz Data: 7K60F1D&7K60FXD,
12.5kHz Voice: 7K60F1E&7K60FXE Combination
of 12.5kHz Voice and Data: 7K60F1W
Modulation Limiting ±2.5kHz@12.5kHz, ±4.0kHz@20kHz,
±5.0kHz@25kHz
FM Hum & Noise 40dB@12.5kHz, 45dB@20/25kHz
Adjacent Channel Power 60dB@12.5kHz, 70dB@20/25kHz
Audio Response +1~-3dB
Audio Distortion ≤3%
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI-TS102 361-1,-2,-3 ,-4

ENVIRONMENTAL

Operating Temperature -30℃~ +60℃
Storage Temperature -40℃~+85℃
ESD IEC610000-4-2(Level4)
±4kV(Contact) ±8kV(air)
American Military Standard MIL-STD-810-C/D/E/F/G
Dust & Water Protection IP67 Standard
Humidity Per MIL-STD-810 C/D/E/F/G Standard
Shock & Vibration Per MIL-STD-810 C/D/E/F/G Standard

GPS

Accuracy specs are for long-term tracking (5 satellites visible at nominal -130dBm)
TTFF(Time To First Fix) Cold Start <1 minute
TTFF(Time To First Fix) Hot Start 10 seconds
Horizontal Accuracy 10m

Accessory

AC Adapter

Single Battery Charger

Multi Battery Charger

Battery

Standard
High Capacity

Belt Clip

Antenna
