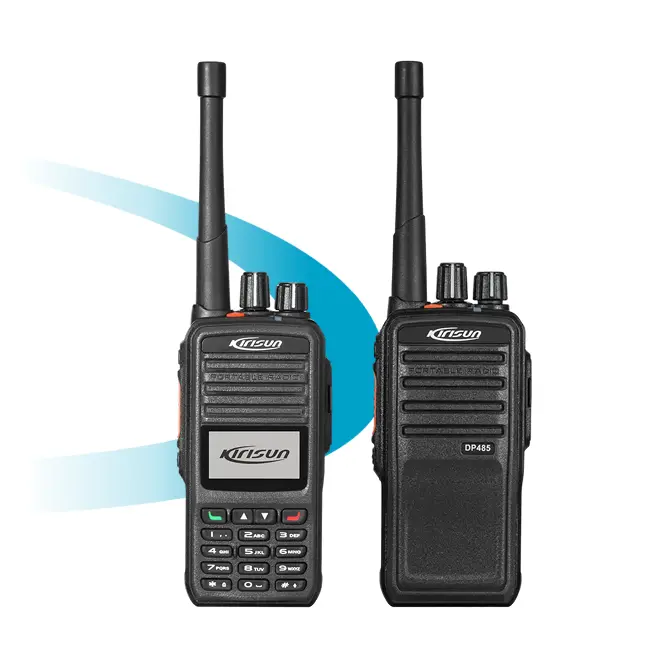

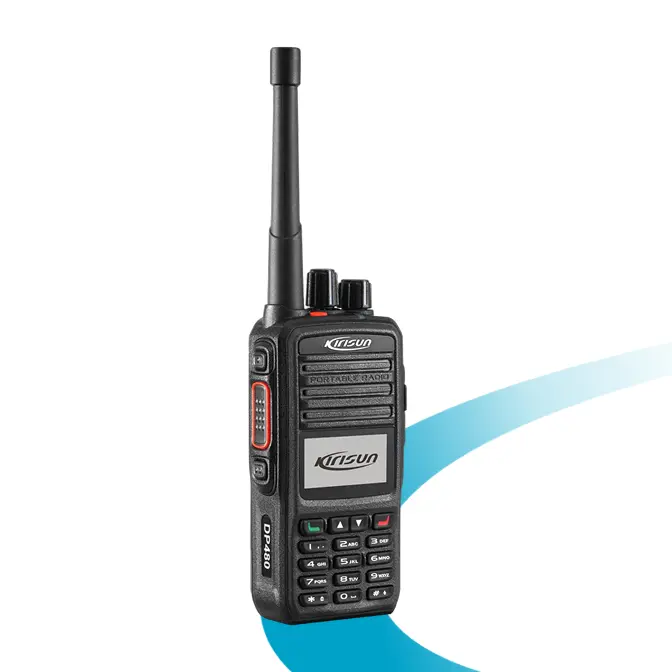

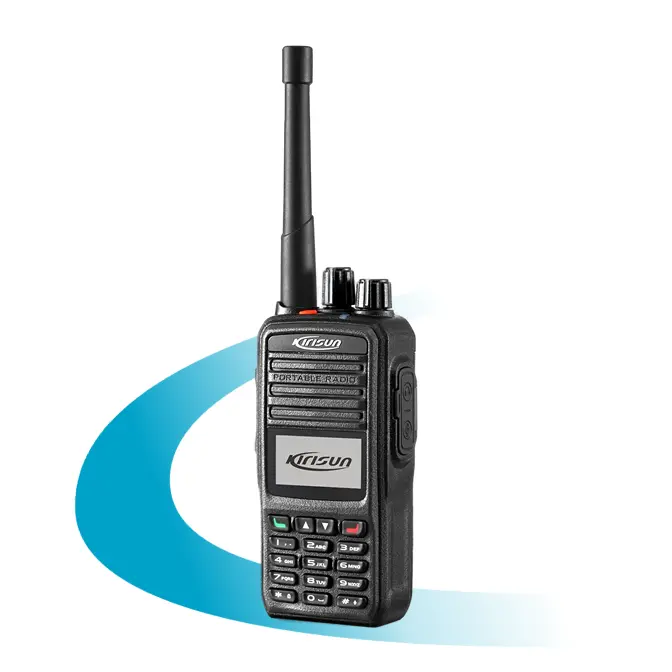

DP 480 / 485 DMR Portable Radio

Increased Call Capacity with DMO 2-slot Operation, GPS Real Time Location, Secure Communications, Pseudo Trunk, Automatic roaming under IP Multi-site Connection System.


User Manual

Download

Brochure

Download

Feature

Analog, Digital and Mixed Modes
DP480/DP485 is able to detect signal type when receiving a call and automatically switch between analog and digital mode. The user can reply during the call hang time using PTT. This feature improves migration from analog to digital.

DMO Support
Provide Direct Mode Operation in 2 slots increasing channel capacity without increasing channel frequency spectrum. Multiple Digital Signaling DP480/485 supports features such as Radio Check, Call Alert, Stun/Revive, Radio Kill, and Remote Monitor, which make the radio management easy.

GPS (Optional)
Integrated GPS enables real-time tracking of radio.

Digital Encryption
DP480/485 supports ARC 40-bit encryption, which guarantees communication safety and improves communication privacy. Encryption function provides further protection against over-the-air interception.

Multiple Emergency Alarm Modes
Emergency alarm/call can be sent to your team member by pressing independent emergency button. It also supports lone worker, mandown.

Roaming
Support roaming while using the radio in an IP site connect system. Programmable Keys for Easy Operation There are three programmable keys to select most-used features.

Pseudo Trunk
Dynamic allocation of slot while using repeater mode. Improve channel utilization providing simultaneous communication in repeater mode.

Specification

GENERAL

Frequency Range 136~174MHz,400~480MHz
Channel Capacity 256
Zone Capacity 16
Channel Spacing 20kHz/25kHz/12.5kHz
Operating Voltage 13.6V±15%
Current Drain Standby <0.6A

Receive <2.0A

Transmit <8A(25W)

Frequency Stability 0.5ppm
Antenna Impedance 50Ω
Dimensions (H·W·D) 151mm×149mm×47mm
Weight 1.15kg

RECEIVER

Sensitivity Analog 0.22uV@12dB SINAD
Sensitivity Digital 0.22uV@BER5%
Selectivity 60dB@12.5kHz,70dB@25kHZ(TIA-603)
60dB@12.5kHz,70dB@25kHz(ETSI)
Spurious Response Rejection 70dB@12.5kHz/25kHz(TIA-603)
70dB@12.5kHz/25kHz(ETSI)
Inter-modulation 70dB@12.5kHz/25kHz(TIA-603)
65dB@12.5kHz/25kHz(ETSI)
Hum and Noise 40dB@12.5kHz;45dB@25kHz
Rated Audio Power Output 1W
Rated Audio Distortion 3%(typical)
Audio Response +1~-3dB
Conducted Spurious Emission -57dBm@<1GHz,-47dBm@>1GHz

TRANSMITTER

RF Power Output 5W/1W(VHF) 4W/1W(UHF)
FM Modulation 11KΦF3E@12.5kHz
16KΦF3E@25kHz
4FSK Digital Modulation 12.5kHz Data Only:7K6ΦFXD
12.5kHz Data&Voice:7K6ΦFXW
Modulation Limiting ±2.5kHz@12.5kHz, ±5kHz@25kHz
Radiated Spurious Emission -36dBm < 1GHz, -30dBm > 1GHz
FM Hum & Noise 40dB@12.5kHz, 45dB@25kHz
Adjacent Channel Power 60dB@12.5kHz, 70dB@25kHz
Audio Response +1~-3dB
Audio Distortion ≤3%
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI-TS102 361-1,-2,-3

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature -30℃~+60℃
Storage Temperature -40℃~+85℃
ESD IEC610000-4-2(Level4)
±4kV(Contact) ±8kV(air
Dust & Water Protection IP54 Standard

GPS

TTFF(Time To First Fix) Cold Start
Horizontal Accuracy
<1 minute
10m
TTFF(Time To First Fix) Hot Start 10 seconds

Accessory

AC Adapter

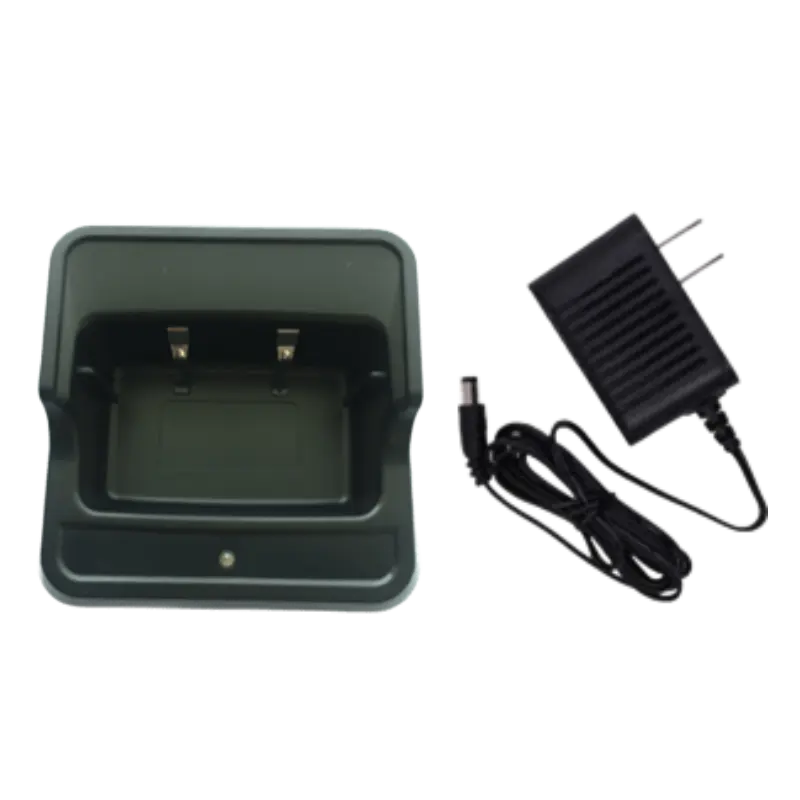

Single Battery Charger

Multi Battery Charger

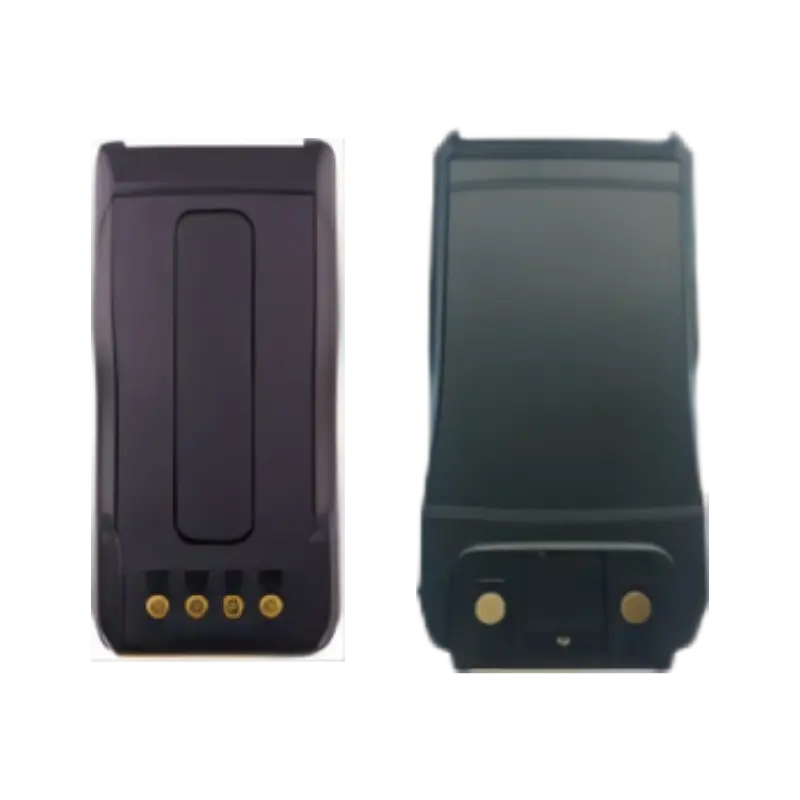

Battery

Standard
High Capacity

Belt Clip

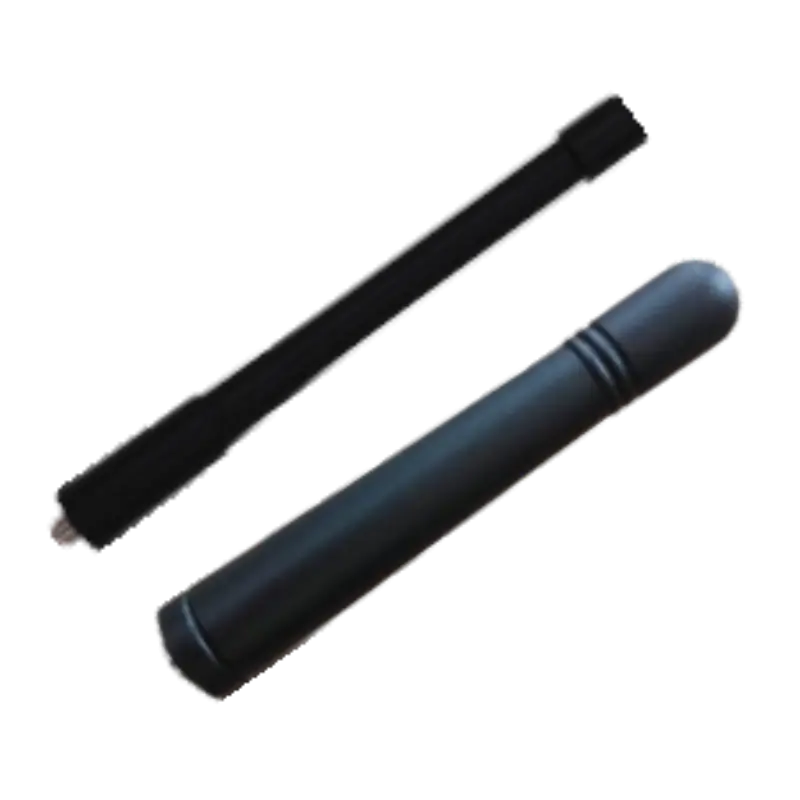

Antenna
