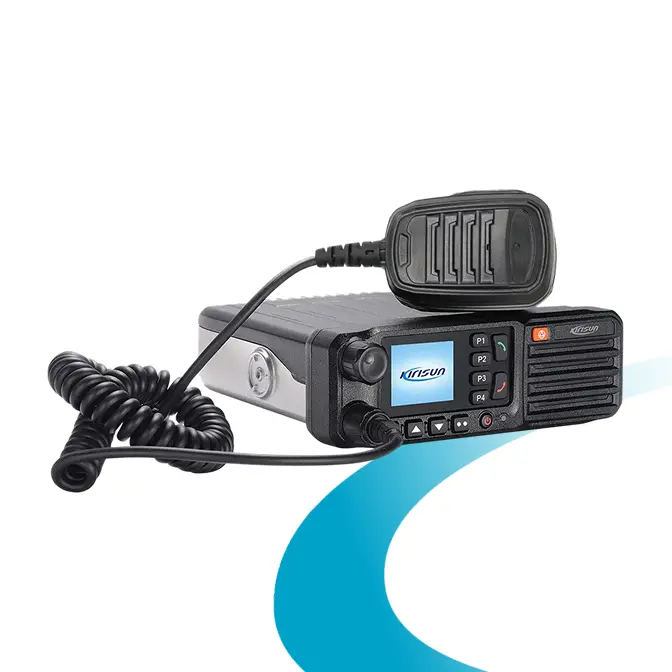

TM 840 GW Analog / DMR II / DMR III to PTToC

TM840 series gateway supports voice interconnection between DMR and PoC radios. It can be widely used in different zones, formats and frequency bands with rich compatibility and high convenience

Quick Installation Guide

Download

Brochure

Download

Category:

Feature

Interconnection Between Private Network and Public Network
TM840-GW gateway supports voice interconnection between DMR and PoC Radio.

Multiple Network Access
2G/3G/4G/Wi-Fi network ensures wide coverage and stable connectivity.

Multiple Private Communications Formats
TM840-GW gateway supports voice interconnection between analog and DMR Tier II.

Interconnection Between VHF and UHF
TM840-GW gateway supports voice interconnection between different frequencies in VHF(136-174MHz) and UHF(400-470MHz).

High Transmitting Power
10 Watt power ratings allow wider coverage.

Specification

GENERAL

Dimensions 176x59x183mm
Weight ≤1380g
Operating Temperature -20℃ + 55℃
Storage Temperature -40℃ + 85℃

PoC

Communications Mode &
Frequency Band		 Asia/Europe
GSM:Band2/3/5/8
WCDMA:Band1/2/5/8
TDD-LTE:Band38/40
FDD-LTE:Band1/2/3/5/7/8/20/28
America
GSM:Band2/8
WCDMA:Band1/2/4/5/8
FDD-LTE:Band2/4/5/7/12/13/17/25/26
RAM+ROM 512MB+4GB
Wi-Fi 2.4GHz

DMR/ANALOG

Frequency Available 136-174MHz/400-470Hz
Format Analog/DMR
Operation Mode Direct Mode/Repeater
Transmitting Power 1-10W
Sensitivity -120dBm

Accessory

Mounting Bracket

Handheld Microphone

DC Power Cord
