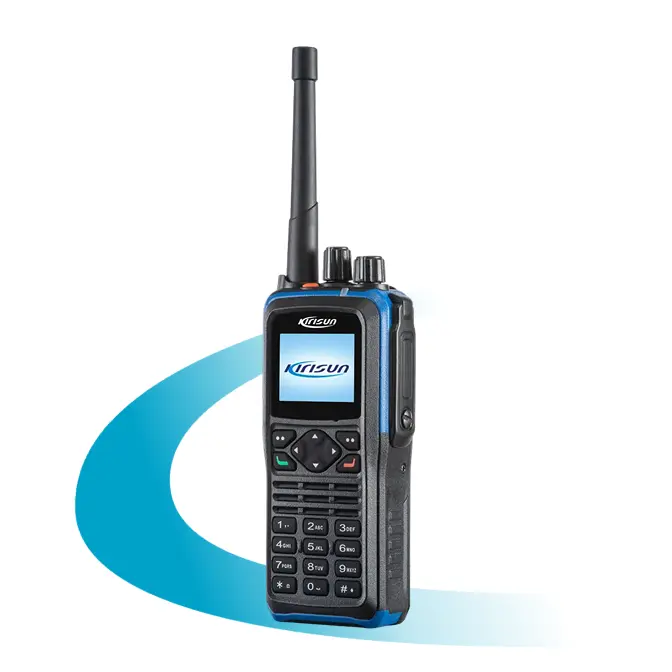

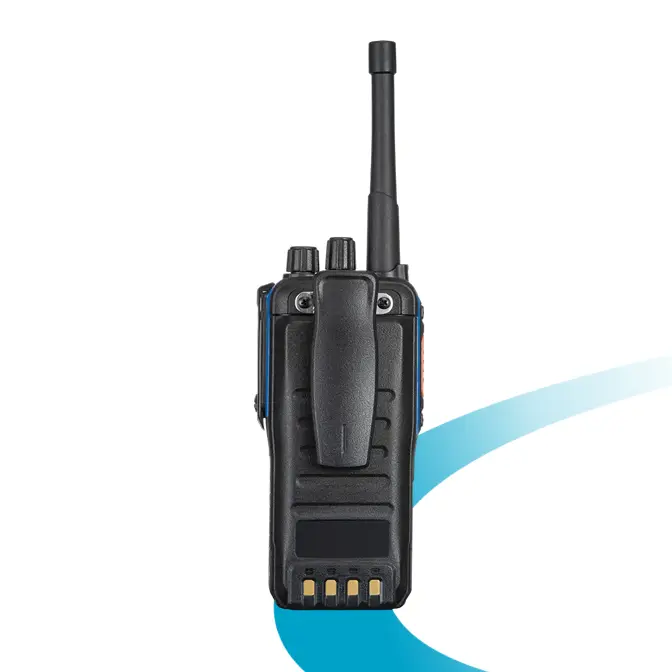

DP 810 DP 815 Ex Intrinsically Safe Portable ATEX & IECEx Certified

Kirisun Intrinsically Safe DMR portable radio DP810 Ex is specially designed and engineered BASED ON ATEX & IECEx and IP 68 standards to operate safely in hazardous environments providing additional safety and reliability keeping your workers safe in the toughest environments such as flammable gases and combustible dust and other hazards.


User Manual

Download

Brochure

Download

Feature

Enhanced Safety
Kirisun DP810 ensures your safety with Built-in Man-down, GPS and Lone Worker functions, as well as a dedicated emergency button, which could be easily triggered in case of any accident, to send an alarm and initiate a voice call to a pre-programmed work fellow or group immediately.

High-Capacity and Safe Design Battery
1960mAh battery supplied in the standard package, operates up to 15-18 hours in 5-5-90 mode. The battery circuitry is fully encapsulated to prevent damaged by high temperature and humidity.

High Quality Audio
Extreme high volume (up to 130 decibels) ensures listening and speaking clearly in a noisy environment to satisfy well communication in heavy equipment, engines, trucks, and factories.

GPS Location
Integrated GPS enables real time tracking of your team members.

Encryption for Communication Security
It provides basic and enhanced encryption capability, including ARC4 and enhanced AES/DES up to 256 digit-encryption algorithms. It ensures secure communication on voice call and data transfer among team members.

Vibration
Vibration alert reminds reception of message and calls in noisy environment. Supports call alert vibration, incoming call vibration, incoming SMS vibration, emergency alarm vibration.

Transmit Interrupt
Enables users to interrupt another radio call to deliver critical communication exactly when and where it is needed.

Multiple Signaling
Multiple advanced analog signaling, including MDC-1200, DTMF, 2-Tone and 5-Tone, providing higher expansion capacity in current communication systems.

Dual-slot Pseudo Trunk
This feature can improve frequency efficiency by allocating free slot to a member providing you to communicate timely in emergencies.

DMR III and MPT Working Mode
It supports DMR III and MPT1327 working mode easily by license control.

Specification

GENERAL

Frequency Range 350-400MHz, 400-470MHz
Channel Capacity 1024
Zone Capacity 248
Channel Spacing 12.5kHz/20kHz/25kHz
Operating Voltage 7.4V DC±20%
Battery (Standard) 1960mAh
Frequency Stability ±0.5 ppm
Antenna Impedance 50Ω
Dimensions(H·W·D)
(with standard battery,
without antenna)
157.5mmx56mmx41.4mm
Weight
(with standard battery)
500g
LCD Display 1.77inch, 5 rows

RECEIVER

Sensitivity Analog 0.22μV(12dB SINAD)
Sensitivity Digital 0.22μV/BER5%
Selectivity
TIA-603
ETSI
60dB@12.5kHz,
70dB@20/25kHz(TIA-603)
60dB@12.5kHz,
Intermodulation 70dB@20/25kHz(ETSI)
Spurious Response
Rejection
TIA-603
ETS
70dB@12.5kHz/25kHz(TIA-603)
65dB@12.5kHz/25kHz(ETSI)
70dB@12.5/20/25kHz(TIA-603)
70dB@12.5/20/25kHz(ETSI)
Hum and Noise 40dB@12.5KHz, 45dB@20/25KHz
Rated Audio Power Output 1W
Audio Response +1~-3dB
Conducted Spurious
Emission
-57dBm@<1GHz,-47dBm@1GHz

TRANSMITTER

RF Power Output ≤ 2W
FM Modulation 11K0F3E@12.5kHz;
14K0F3E@20kHz; 16K0F3E@25kHz
4FSK Digital Modulation 12.5kHz Data: 7K60F1D&7K60FXD,12.5kHz Voice:
7K60F1E&7K60FXE Combination of
12.5kHz Voice and Data: 7K60F1W
Modulation Limiting ±2.5kHz@12.5kHz,
±4.0kHz@20kHz, ±5.0kHz@25kHz
FM Hum & Noise 40dB@12.5kHz, 45dB@20/25kHz
Adjacent Channel Power 60dB@12.5kHz, 70dB@20/25kHz
Audio Response +1~-3dB
Audio Distortion ≤3%
Digital Vocoder Type AMBE+2™
Digital Protocol ETSI-TS102 361-1,-2,-3 ,-4

ENVIRONMENT SPECIFICATIONS

Operating Temperature -20℃~ +50℃
Storage Temperature -40℃~+85℃
ESD IEC610000-4-2(Level4)
±4kV(Contact) ±8kV(air)
American Military
Standard
MIL-STD-810-C/D/E/F/G
Dust & Water Protection IP68 Standard
Humidity Per MIL-STD-810 C/D/E/F/G
Standard
Shock & Vibration Per MIL-STD-810 C/D/E/F/G
Standard
Anti-explosion levels
(ATEX)
II 2G Ex ib IIC T4(Gas)
II 2D Ex ib IIIC T120℃ IP5X(Dust)
Anti-explosion
levels(IECEx)
Ex ib IIC T4(Gas)
Ex ib IIIC T120℃ IP5X(Dust)

GPS

TTFF(Time To First Fix)
Cold Start
<1 minute
TTFF(Time To First Fix)
Hot Start
10 seconds
Horizontal Accuracy 10m

Accessory

AC Adapter

Single Battery Charger

Multi Battery Charger

Battery

Standard
High Capacity

Belt Clip

Antenna
